Coaxial Cable Bulk LMR-240 Type
Coaxial Cable Bulk LMR-240 Type
Couldn't load pickup availability

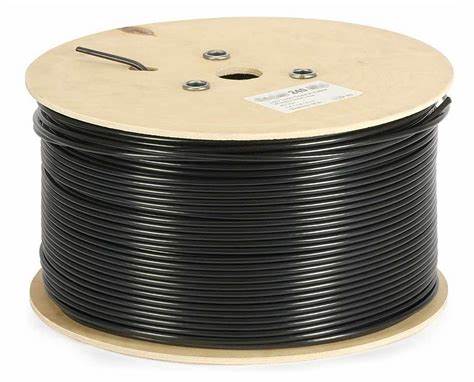

LMR-240 Type PVC Low Loss Flexible Coax Cable Black PVC Jacket
One 10-foot piece of LMR-240 type coaxial cable. If you order more than one, we will ship one piece of coaxial cable in the total length. In other words, if you order "5", you will receive one 50-foot length of LMR-240 coaxial cable.

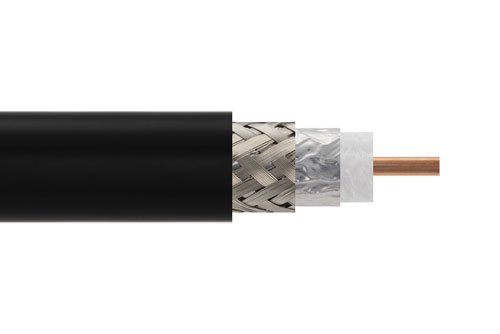

LMR-240 coax cable is manufactured in a flexible design and has a 50-ohm impedance. This low loss flexible 50-ohm coax cable LMR-240 is constructed with a 0.24-inch diameter. LMR-240 is rated for a 6 GHz maximum operating frequency. This 50 ohm 0.24-inch diameter and low loss flexible coax cable is built with a shield count of 2 and RF shielding of 90 dB. LMR-240 coax is constructed with Foam PE dielectric and a maximum operating temperature of 85 degrees C.
Contact us BEFORE YOU PLACE AN ORDER if you more than one hundred feet in one uncut piece as we may not be able to supply that at times.
PLEASE NOTE: We cannot offer returns on wire, cable, or other items that are custom cut to the customer's specifications.
LMR™ is a trademark of Times Microwave System.
| Velocity of Propagation | 83% |
| Dielectic Constant | 1.42 |
| Time Delay | 1.21 ns/ft |
| Impedance | 50 Ohm |
| Capacitance | 24.2 pF/ft |
| Inductance | 0.060 uH/ft |
| Shielding Effectiveness | > 90 dB |
| Jacket Spark | 1,500 Vrms |
| Peak Power | 5.6 kW |
| Frequency (f) | Attenuation (db/100ft) | Max Power - CW (W) |
|---|---|---|
| 30 MHz | 1.3 | 1,490 |
| 50 MHz | 1.7 | 1,150 |
| 150 MHz | 3.0 | 6600 |
| 220 MHz | 3.7 | 140 |
| 450 MHz | 5.3 | 380 |
| 900 MHz | 7.6 | 260 |
| 1.5 GHz | 9.9 | 200 |
| 1.8 GHz | 10.9 | 180 |
| 2.0 GHz | 11.5 | 170 |
| 2.5 GHz | 12.9 | 150 |
| 5.8 GHz | 20.4 | 100 |
| 8.0 GHz | 24.3 | 80 |
